Efficient & Reliable Powertrain This 4×2 cargo truck is driven by the SINOTRUK MC07.28-30 engine, delivering 280HP and complying with Euro III emission standards. It is paired with a HW13709XSTC2 9-speed manual gearbox (with synchronizer and PTO), ensuring smooth shifting and optimal fuel economy for regional distribution.
Robust Chassis & MAN Technology Built for stability, the truck utilizes a 7T front steering axle and a robust 13T driving rear axle based on MAN technology. The suspension system consists of reinforced parabolic leaf springs, and it rolls on durable 315/80R22.5 tubeless tires. A large 400L fuel tank supports long-distance operations.

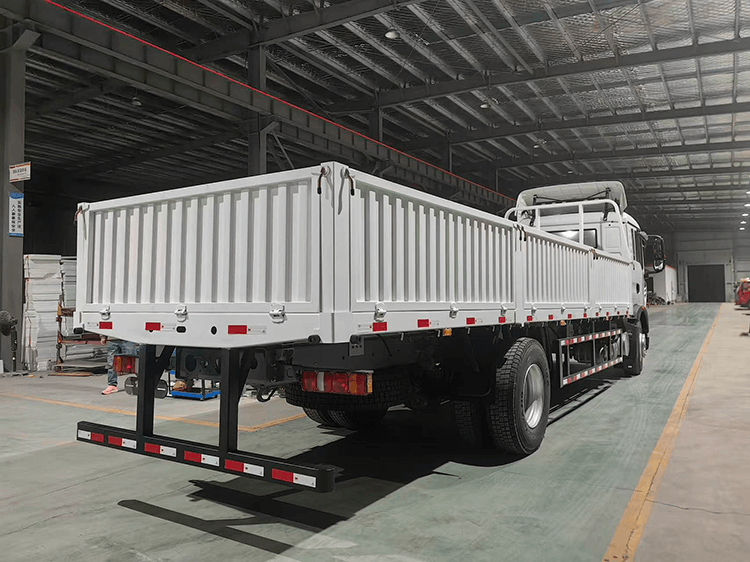

High-Capacity Cargo Body The vehicle is equipped with a large dropside cargo body measuring 8350 x 2400 x 800 mm. Constructed with a 3mm thick floor and 1.5mm thick sides, it is designed to handle general cargo, agricultural products, and palletized goods efficiently.
Enhanced Safety & Comfort The TX-M Cabin features a single sleeper and air conditioning for driver comfort. Safety is prioritized with BOSCH steering, ABS (4S/4M), and a unique 4-position camera system for 360-degree visibility. Additional features include intercooler protection and a rear tow hook.
| Category | Parameter | Specification |
| Cab | Model | TX-M Cabin, Single sleeper, A/C |
| Engine | Model | SINOTRUK MC07.28-30 |
| Power | 280 HP (Euro III) | |
| Transmission | Gearbox | HW13709XSTC2 (9 Forward, 1 Reverse) |
| Features | Manual, Synchronizer, PTO | |
| Chassis | Front Axle | 7,000 kg (Drum brake) |
| Rear Axle | 13,000 kg (Drum brake, MAN Tech) | |
| Steering | BOSCH brand | |
| Suspension | Reinforced parabolic leaf springs | |
| Tires | 315/80R22.5 Tubeless + 1 spare | |
| Fuel Tank | 400L | |
| Cargo Body | Dimensions | 8350 x 2400 x 800 mm |
| Thickness | Bottom: 3 mm / Side: 1.5 mm | |
| Safety | Braking | ABS (4S/4M) |
| Visual | Four-positions camera | |
| Other | Tachograph, Intercooler protection, Rear tow hook |
