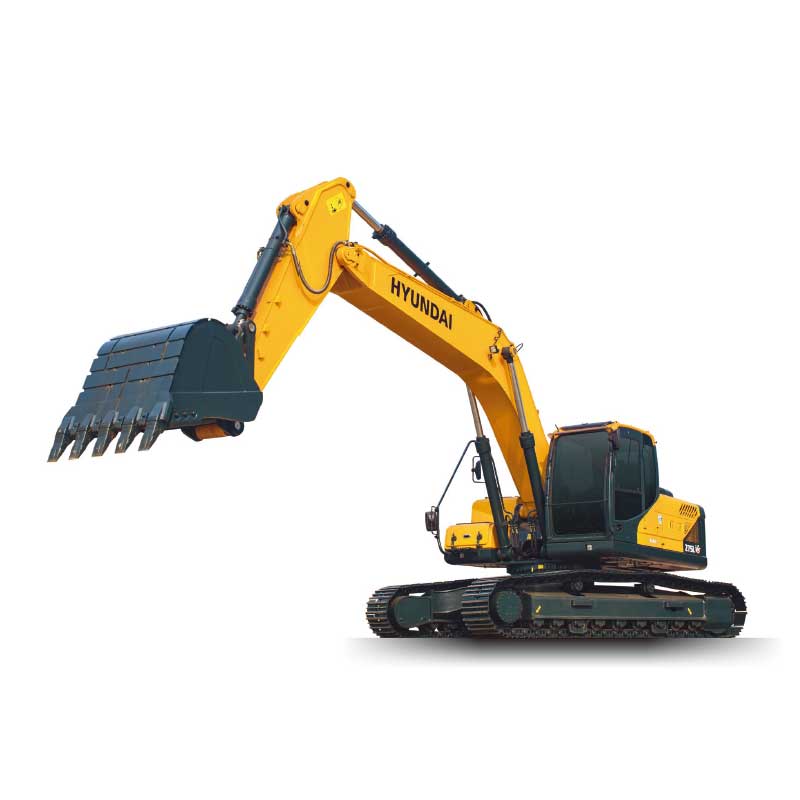

Why Choose the Hyundai R275L VS?
- Powerful & Efficient Engine: Equipped with the Cummins QSB6.7 engine, utilizing High Pressure Common Rail (HPCR) technology for complete combustion. It delivers a rated power of 146 kW (195 HP), ensuring strong performance while meeting Tier 3 emission standards.
- Smart Hydraulic Control: Features IPC (Intelligent Power Control) and VPC (Variable Power Control) systems. IPC intelligently controls pump flow to reduce fuel consumption, while VPC automatically adjusts pilot pressure to match the working mode, ensuring high efficiency and low fuel usage.
- Heavy-Duty Durability: Designed for harsh environments, it features a heavy-duty boom and arm with cast steel components, increasing service life by 1.5 times. The undercarriage is reinforced with a thicker support ring and a high-strength X-frame (20% stronger).
- Large Rock Bucket: Comes standard with a 1.35m³ reinforced rock bucket. It uses a “Fish Tail” welding design to disperse stress and reduce resistance, significantly extending the bucket’s lifespan compared to standard models.
- Operator Comfort: The cabin is designed to reduce fatigue with low noise levels and improved visibility. Joystick spacing has been optimized (reduced to 500mm) for better ergonomics, and the seat offers a wide range of adjustments.
- Easy Maintenance: Maintenance is simplified with wide-opening side doors and extended filter intervals. The hydraulic oil filter replacement cycle is extended to 1000 hours.
| Specification Item | Details |
| Model |
Hyundai Robex 275L VS |
| Operating Weight |
25,700 kg |
| Engine Model |
Cummins QSB6.7 (Tier 3) |
| Rated Power |
146 kW (195 HP) @ 1,900 rpm |
| Standard Bucket Capacity |
1.35 m³ (Rock Bucket) |
| Max. Digging Depth |
6,900 mm |
| Max. Digging Reach |
10,200 mm |
| Overall Dimensions (LxWxH) |
9,922 x 3,180 x 3,280 mm |
| Travel Speed |
5.7 km/h (High) / 3.3 km/h (Low) |
| Fuel Tank Capacity |
440 L |
| Hydraulic System Capacity |
285 L |
