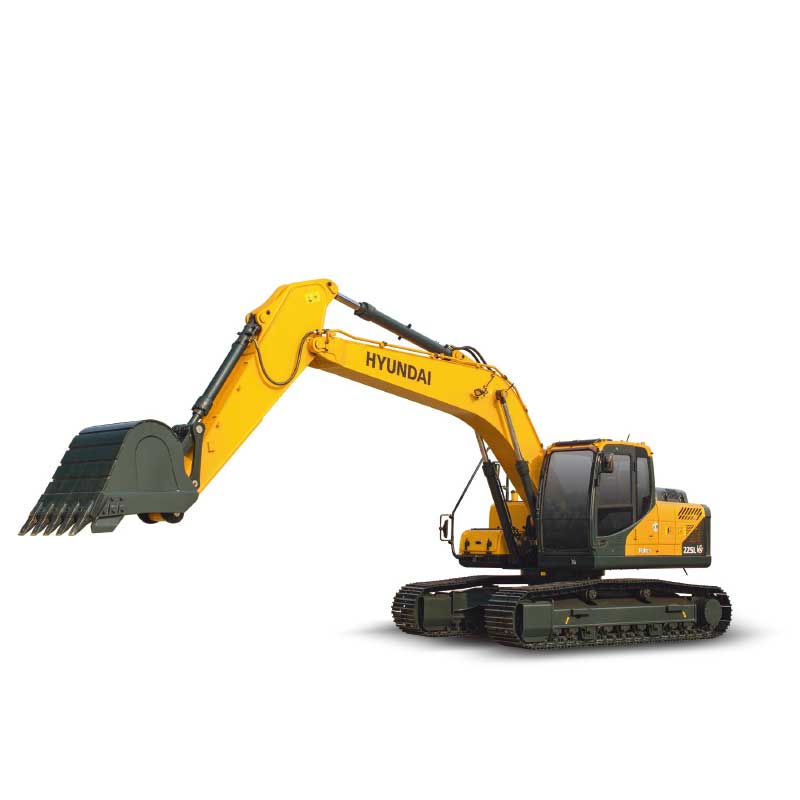

Why Choose the Hyundai R225L VS?
- Powerful Cummins Engine: Equipped with the Cummins QSB6.7 engine, this excavator utilizes advanced High Pressure Common Rail (HPCR) technology to ensure complete fuel combustion. It produces a rated power of 113kW (151HP), providing strong torque while meeting Tier 3 emission standards.
- Intelligent Hydraulic System: The R225L VS features Hyundai’s unique VPC (Variable Power Control) and IPC (Intelligent Power Control) systems. The IPC system intelligently controls the main pump flow via the joystick to reduce fuel consumption, while VPC automatically matches pilot pressure to the working mode for maximum efficiency.
- Reinforced Heavy-Duty Structure: Designed for longevity, the “VS” series comes with a heavy-duty boom and arm made of cast steel components, increasing durability by 1.5 times. The undercarriage features a strengthened X-frame and a thicker support ring (strength increased by 20%) to withstand rough terrain.
- Enhanced Durability Bucket: It comes standard with a 1.05m³ reinforced bucket. The bucket uses a “Fish Tail” welding design to disperse stress and reduce wear, doubling its service life compared to standard buckets.
- Operator Comfort & Safety: The cabin offers a low-noise environment with improved visibility. Joystick spacing has been reduced to 500mm and angles adjusted for better ergonomics, reducing operator fatigue during long shifts.
- Easy Maintenance: Maintenance is hassle-free with wide-opening side doors and extended service intervals. The hydraulic oil filter replacement cycle is extended to 1000 hours, significantly lowering operating costs.
| Specification Item | Details |
| Model | Hyundai Robex 225L VS |
| Operating Weight |
22,570 kg |
| Engine Model |
Cummins QSB6.7 (Tier 3) |
| Rated Power |
113 kW (151 HP) @ 1,900 rpm |
| Standard Bucket Capacity |
1.05 m³ (Reinforced) |
| Max. Digging Depth |
6,730 mm |
| Max. Digging Reach |
9,980 mm |
| Overall Dimensions (LxWxH) |
9,550 x 2,990 x 3,080 mm |
| Travel Speed |
5.5 km/h (High) / 3.4 km/h (Low) |
| Fuel Tank Capacity |
400 L |
| Hydraulic System Capacity |
275 L |
