| Parameter | Specification |
| Welding Method | Submerged arc welding, gas shielded welding, or argon arc welding (customizable based on user requirements) |
| Welding Length | 1000–13000 mm (manufactured based on customer requirements) |
| Base Metal | Carbon steel, stainless steel, and aluminum alloy |
| Base Metal Thickness | 0.5–12 mm |
| Air Pressure | 0.4–0.6 MPa |
| Workpiece Clamping Method | Pneumatic piano-key clamping |
| Speed Regulation | Stepless speed regulation |
| Welding Speed | 50–800 mm/min |
| Welding Result | Single-sided welding with double-sided formation |

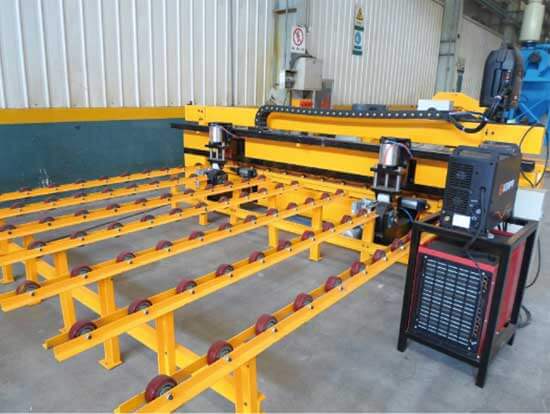

Flat Automatic Welding Machine
For tankers, aluminum tankers, water trucks, powder tankers, cement mixers, and other raw material tanks with a mosaic sheet, the plate width was widened to about 10m.
Two welded workpieces are tightly pressed onpressing device and welded by a motor to drive a water-cooled torch so that the two plates are welded together. The welding line is welded on thees are burnished, level, beautiful andsingle face and shaped on double faces; the weldedolate is level; the welding lines on the front and back facof the welding line is not more than + 1.5 mm; the wel height of the front face is not moresmooth; the straightness deviation full-length range than 2 mm; the weld height of the back face is not more than 1 mm; the welding line is 8 to 12 mm in width.
The equipment comprises a bed body, a pianotype pressing device, a track girder, a welding walking s)/stem, a location device, a gas circuit system, a back shaping base groove, a welding power source, a water cooling system, an exhaust and lighting system, a plate conveying device, an electric control system, and a remote control device
