Why Choose the Develon DX360LCA-7B?
-
Powerful Develon DX12 Engine: At its heart is the Develon DX12 engine, producing a rated power of 238 kW (319 HP) and a massive torque of 142 kgf.m. It delivers high work reliability and fuel efficiency specifically tuned for heavy loads.
-

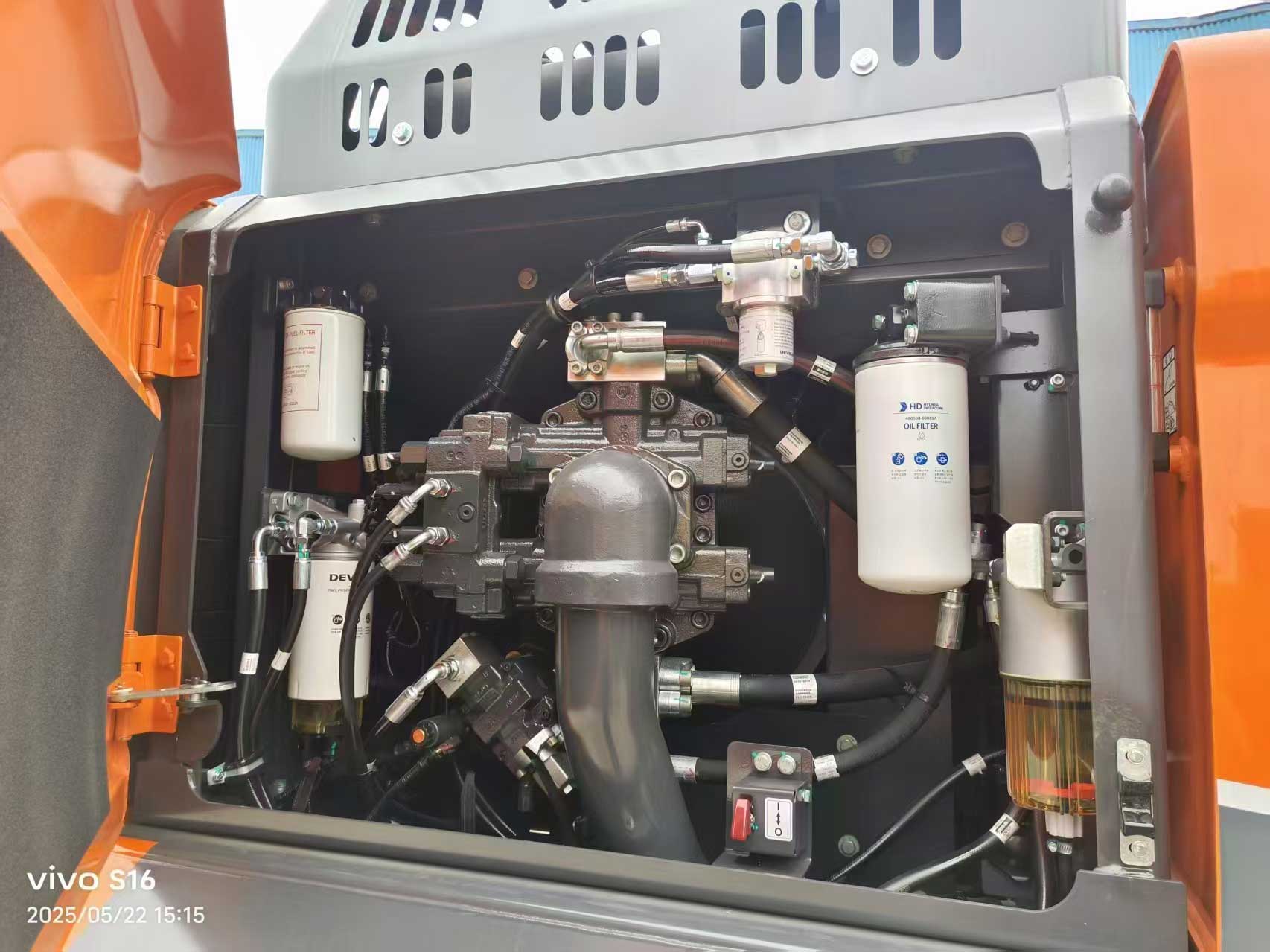

Revolutionary VBO Hydraulic System: Features DEVELON’s proprietary VBO (Virtual Bleed Off) system. Unlike traditional hydraulics, VBO uses electronic sensors to virtually generate flow, minimizing internal energy loss and fuel consumption while providing immediate joystick response.
-
Reinforced Chassis for Mining: The chassis structure is optimized for durability and stability. It features 9 lower rollers (increased length) to effectively support the machine during heavy loading work, making it ideal for mining environments.
-
Smart Power Control (SPC): The SPC system automatically identifies the working mode and adjusts engine RPM to supply the proper pump torque, reducing unnecessary fuel waste and relieving the operator’s workload.
-
Enhanced Safety & Cooling: Designed for harsh sites, it comes standard with cab guardrails and an enhanced lighting system (9 lamps total) for night work. It also features a variable-speed independent cooling system that separates the water box and oil cooling for real-time temperature monitoring.
| Specification Item | Details |

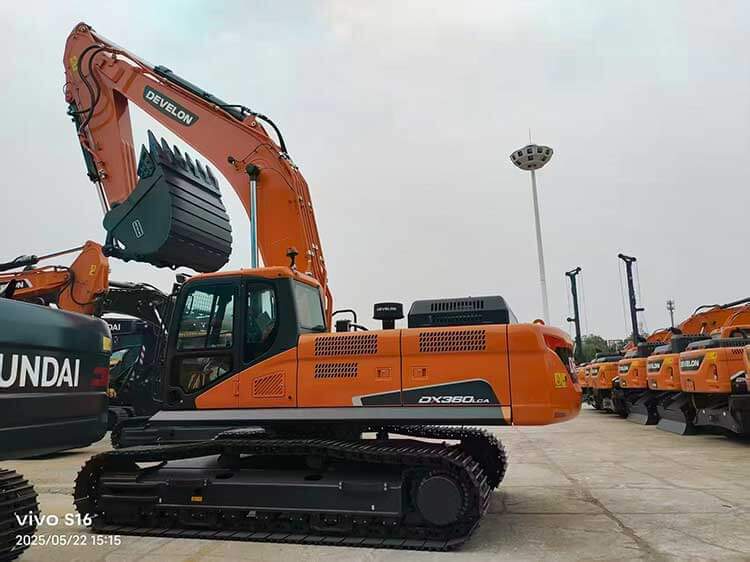

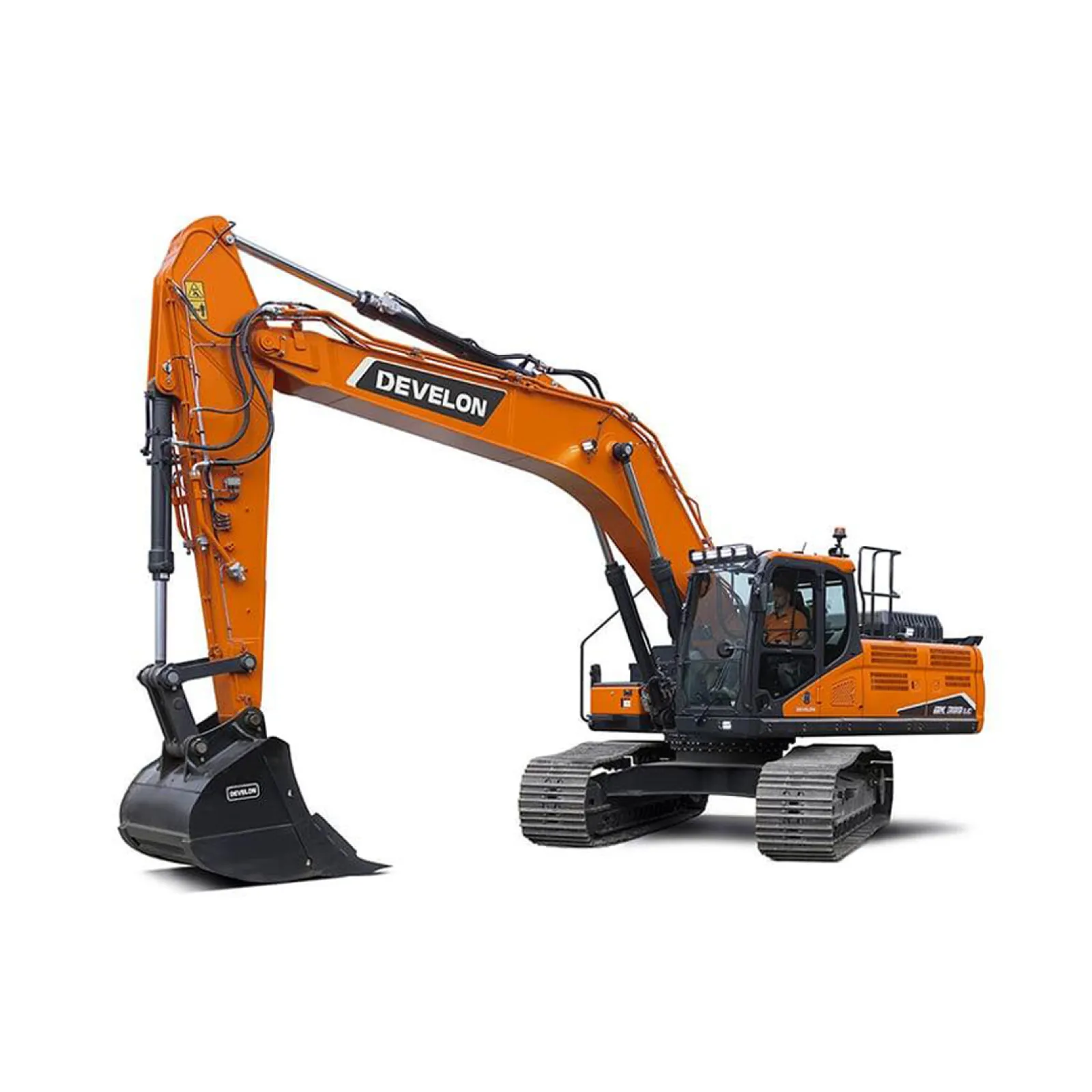

| Model | Develon DX360LCA-7B |
| Engine Model | Develon DX12 |
| Rated Power | 238 kW (319 HP) @ 1,800 rpm |
| Bucket Capacity | 1.94 m³ – 2.32 m³ (SAE) |
| Max. Digging Reach | 10,233 mm – 11,160 mm |
| Max. Digging Depth | 6,668 mm – 7,485 mm |
| Undercarriage Width | 3,280 mm (Standard) |
| Fuel Tank Capacity | 610 L |
| Hydraulic Tank Capacity | 420 L |
